Product Description

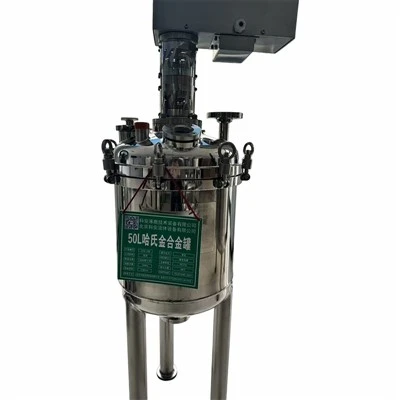

When faced with aggressive media such as wet chlorine, sulfuric acid, or chlorides, standard materials often fall short. We developed the C276 Hastelloy reaction vessel using premium HC276 or C22 alloys as the ideal solution for these extreme corrosion challenges in fine chemicals. Since relocating to our expanded Hebei production base in 2018, we have further strengthened our specialized welding techniques, ensuring that each C276 Hastelloy reaction vessel maintains structural integrity even under high-pressure conditions.
Our C276 Hastelloy reaction vessel is not only superior in material but also versatile in configuration. You can select from various agitator types, including anchor, paddle, turbine, or spiral ribbon, to suit your specific material characteristics. The vessel is equipped with a high-quality mechanical seal and precision temperature sensors, ensuring controlled reactions within a -20°C to 150°C range. Leveraging our 11,770-square-meter facility and professional R&D team, we can provide in-depth non-standard customization based on your technical drawings or prototypes.
Application Fields
Perfect for fine chemicals, pharmaceuticals, and fluorine chemicals involving wet chlorine and strong acids.
Customization & Quality Control
We offer bespoke port layouts and non-standard power designs. Every C276 Hastelloy reaction vessel undergoes rigorous X-ray flaw detection and material verification via handheld spectrometers.
Packaging & Shipping
Each unit is multi-layered with protective film and enclosed in heavy-duty export-grade plywood cases to ensure safety during long-distance sea freight.
FAQ
Q: What are the payment terms?
A: We require a 50% prepayment, with the 50% balance paid before shipment.
Q: How is material authenticity guaranteed?
A: We provide original mill material certificates for all Hastelloy components.
Hot Tags: c276 hastelloy reaction vessel, China c276 hastelloy reaction vessel manufacturers, suppliers, glass lined reactor, jacketed reactor, pilot scale reactor, reactor, stirred reactor, vacuum reaction vessel
Specifications
|
Material |
Hastelloy HC276 / C22 (Optional) |
|
Design Pressure |
0.1 – 1.6 MPa |
|
Wall Thickness |
4mm – 20mm (Customizable) |
|
Finish |
Internal Ra≤0.4μm, External Ra≤0.8μm |
|
Sealing |
Specialized mechanical seal |
