Enhanced Heat Transfer Efficiency

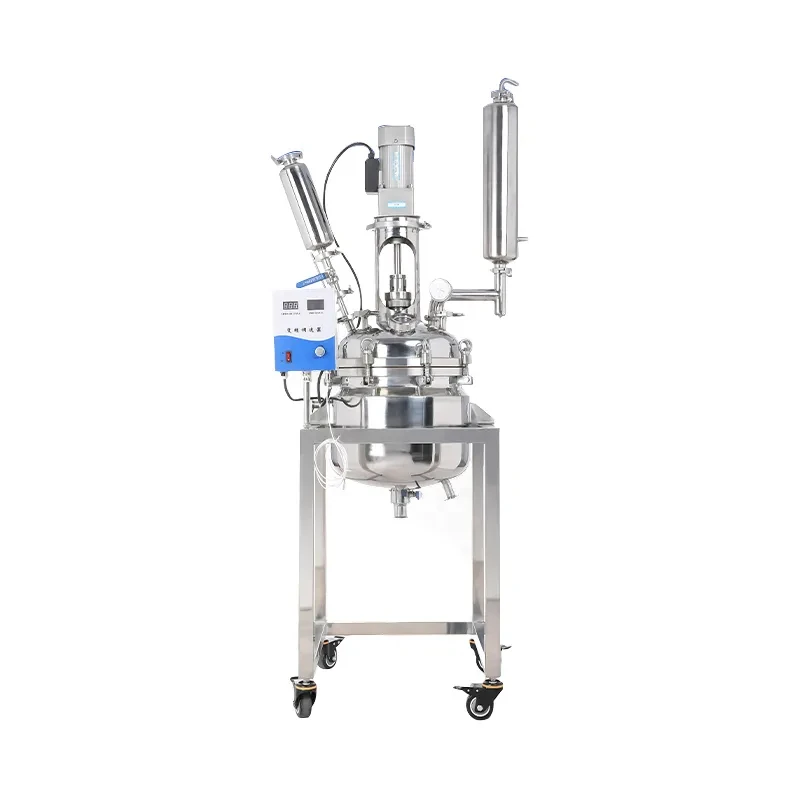

A Double Layer Jacketed Reactor provides superior temperature control with dual jacket technology. This reactor has a 5mm inner wall with a 2mm inner jacket and 3mm outer jacket thickness. The reactor has a 500L working capacity for specialized production requirements. Many fine chemical and pharmaceutical companies choose this product for their critical temperature-sensitive processes. The reactor offers exceptional heat transfer for precise process control.
Advanced Jacket Technology
This double layer jacketed reactor has a 230MPa tensile strength for reliable operation. The reactor has a 250°C maximum operating temperature for versatile processing. The product has a 6-year warranty against material and construction defects. A Double Layer Jacketed Reactor has a 10-bar maximum working pressure with 5.0 bar and 4.0 bar jacket pressure ratings. The reactor has a 0.8μm surface finish for superior product purity. The product is made from 316L stainless steel with advanced double jacket technology.
Stringent Quality Control
A Double Layer Jacketed Reactor undergoes 100% pressure testing and weld examination before shipment. The reactor has a 0.5mm jacket wall thickness for optimized heat transfer. The product has a 15-year structural warranty on the double jacketed vessel. The reactor is made from ASTM A240 316L material with full material traceability. This reactor has a 0.3mm wall thickness tolerance for precision engineering. The product comes with a comprehensive certification and documentation package.
Perfect for Temperature-Critical Processes
A product is the choice for applications requiring precise temperature control. This reactor has a 900mm diameter and 1,200mm height. The reactor has a 750L total volume for process flexibility. The Double Layer Jacketed Reactor is available in sizes from 50L to 20,000L. The reactor is engineered for maximum heat transfer efficiency. The product is backed by our expert technical support and service team.
Hot Tags: double layer jacketed reactor, China double layer jacketed reactor manufacturers, suppliers
Technical Data Table
|
Parameter |
Value |
|
Material |
316L stainless steel |
|
Working Capacity |
500 L |
|
Max Operating Temp |
250°C |
|
Max Working Pressure |
10 bar |
|
Jacket Pressure |
5.0 / 4.0 bar |
