Paragraph 1 – Control Temperature with a Jacketed Design

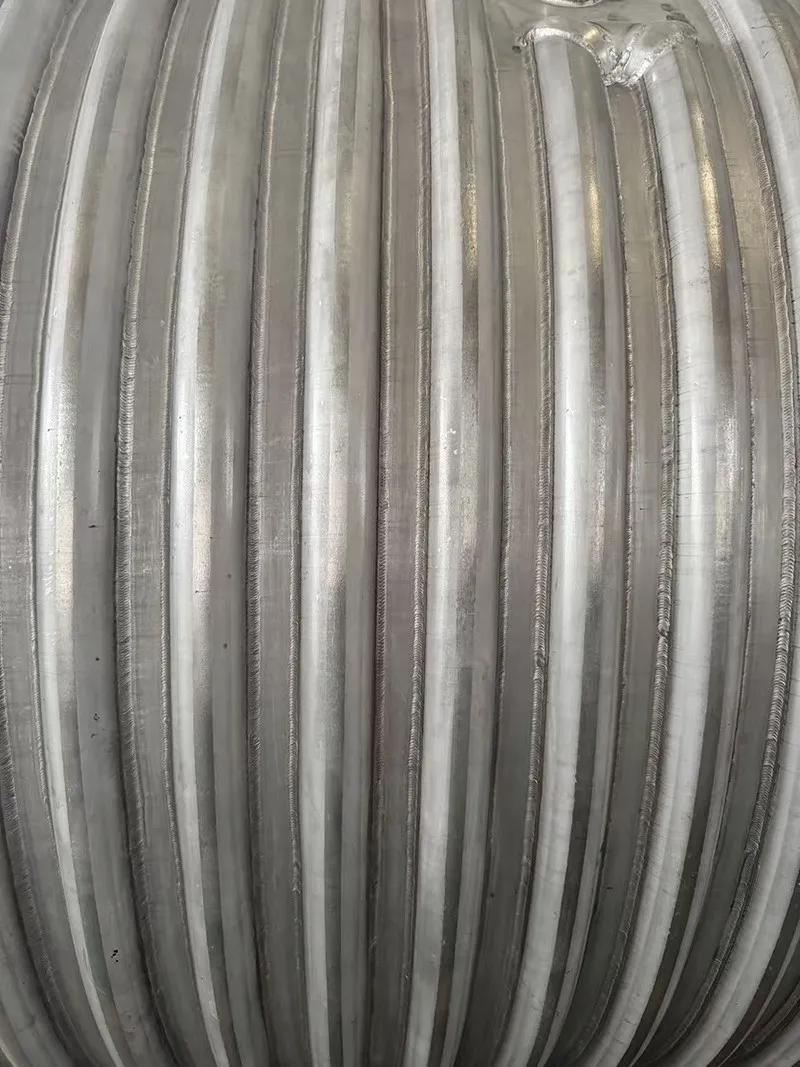

You need precise temperature control for your reactions. Our company has 16 years of industry experience. Our factory covers over 11,000 square meters. We have 80 employees and a professional technical team. The Stainless Steel Jacketed Reactor is one of our best-selling products. The jacket fits tightly to the reactor body for high heat exchange efficiency. From our FAQ, we support custom designs. You provide the specifications. We make the reactor for you.
Paragraph 2 – Full Specs for Heating and Cooling
This Stainless Steel Jacketed Reactor uses 304 or 316L stainless steel. The volume range is 50L to 8000L. The internal design pressure is 0.1 to 1.6MPa. The jacket design pressure is 0.3 to 1.0MPa. The design temperature is -20℃ to 150℃. The shell thickness is 4-20mm. The jacket thickness is 3-12mm. You can choose a mechanical or magnetic agitator drive. The blade type is customizable. We include a cleaning ball, a temperature sensor, a pressure gauge, a safety valve, an inlet, an outlet, a sight glass, and jacket water ports. The inner surface can be polished to Ra≤0.4μm. The outer surface is polished or sandblasted.
Paragraph 3 – A Coating Company Was Happy with Our Temperature Accuracy
A Stainless Steel Jacketed Reactor works for chemicals, food, pharmaceuticals, coatings, and adhesives without strong corrosives. We once helped a coating company. They needed to heat a high-viscosity resin. We designed a jacketed reactor for them. It took 60 days to finish production and testing. The customer was very happy with our temperature accuracy. We offer a 12-month warranty. We also accept third-party inspections.
Hot Tags: stainless steel jacketed reactor, China stainless steel jacketed reactor manufacturers, suppliers
Specification Table
|
Parameter |
Description |
|
Material |
304 / 316L Stainless Steel (Optional) |
|
Volume |
50L - 8000L |
|
Design Pressure (Internal) |
0.1 - 1.6 MPa |
|
Design Pressure (Jacket) |
0.3 - 1.0 MPa |
|
Design Temperature |
-20℃ - 150℃ |
|
Shell Thickness |
4 - 20mm (Customized) |
|
Jacket Thickness |
3 - 12mm (Customized) |
|
Agitator Type |
Mechanical or Magnetic Drive (Blade customizable) |
|
Standard Parts |
Cleaning ball, temp. sensor, pressure gauge, safety valve, inlet/outlet, sight glass, jacket ports |
|
Inner Surface Finish |
Mechanical or Electrolytic Polish (Ra≤0.4μm) |
|
Outer Surface Finish |
Polished or Sandblasted |
|
Customization |
Non-standard size, port, and power |
|
Suitable Media |
Regular chemicals, food, pharmaceutical intermediates, coatings, adhesives (no strong corrosives) |
