Product Description

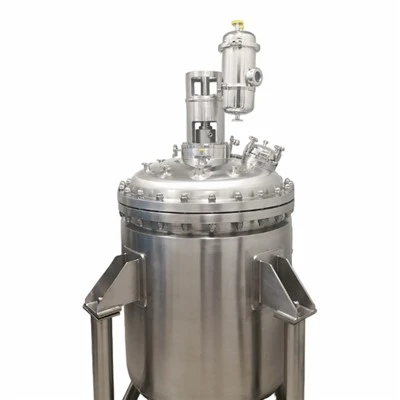

In the production of coatings, adhesives, and food/pharma, heat exchange efficiency is paramount. Our stainless heating jacketed reactor achieves excellent heating and cooling performance through a precision-fitted jacket design. With a jacket pressure rating of up to 1.0MPa and high-grade 304 or 316L construction, this stainless heating jacketed reactor maintains superior mechanical properties during frequent thermal cycles. We maintain strict control during fabrication to ensure the jacket is leak-free, guaranteeing a safe and high-efficiency heat transfer process.
Every detail of this stainless heating jacketed reactor is designed for the demands of continuous industrial production. We support both mechanical and magnetic stirring and provide a comprehensive port configuration, including jacket inlets/outlets, sight glasses, and CIP balls. The internal surface is strictly controlled within Ra≤0.4μm to meet sanitary requirements. Leveraging our 8,000-square-meter modern plant and advanced CNC equipment, we ensure that every custom stainless heating jacketed reactor is delivered on schedule.
Application Fields
Ideal for pharmaceuticals, food, coatings, and adhesives requiring controlled temperature reactions.
Customization & Quality Control
We support non-standard dimensions and multi-interface designs. Both the vessel and the jacket undergo independent pressure tests to ensure 100% leak-proof performance.
Packaging & Shipping
Packed in heavy-duty cardboard or fumigation-free wooden crates with vibration dampening, suitable for international freight.
FAQ
Q: What is the warranty period?
A: We provide a 12-month warranty for all our equipment.
Q: Do you have an in-house R&D team?
A: Yes, our technical team provides specialized non-standard design and structure optimization.
Hot Tags: stainless heating jacketed reactor, China stainless heating jacketed reactor manufacturers, suppliers, agitated vessel reactor, continuous flow reactor, high pressure reactor, sanitary reactor, stainless steel reactor, vertical reaction vessel
Specifications
|
Material |
SUS304 / SUS316L |
|
Jacket Pressure |
0.3 – 1.0 MPa |
|
Vessel Pressure |
0.1 – 1.6 MPa |
|
Wall Thickness |
Vessel 4-20mm, Jacket 3-12mm |
|
Temperature |
-20°C to 150°C |
